SMART IMPACT WRENCH WITH ADAPTIVE TORQUE TECHNOLOGY
Achieve ICC-ESR and ETA certification for anchor bolt installation into concrete with the introduction of the new Adaptive Torque System
Over-torqued and under-torqued anchors are among the most common causes of failed jobsite inspections
Independent studies have identified poor construction procedures as one of the main causes of structural failure, while the American Construction Inspector Association reveal that over-and under-torqued anchors are the number-two reason for failed jobsite inspections.
And maybe it is no wonder, when the available tools do not match the current demands. To correctly install an anchor your choices are between a slow and imprecise torque wrench, cumbersome torque bars or a powered impact wrench, which lets productivity soar while safety and reliability slump.
Now, with Hilti's Adaptive Torque (AT) system, you don’t have to compromise.

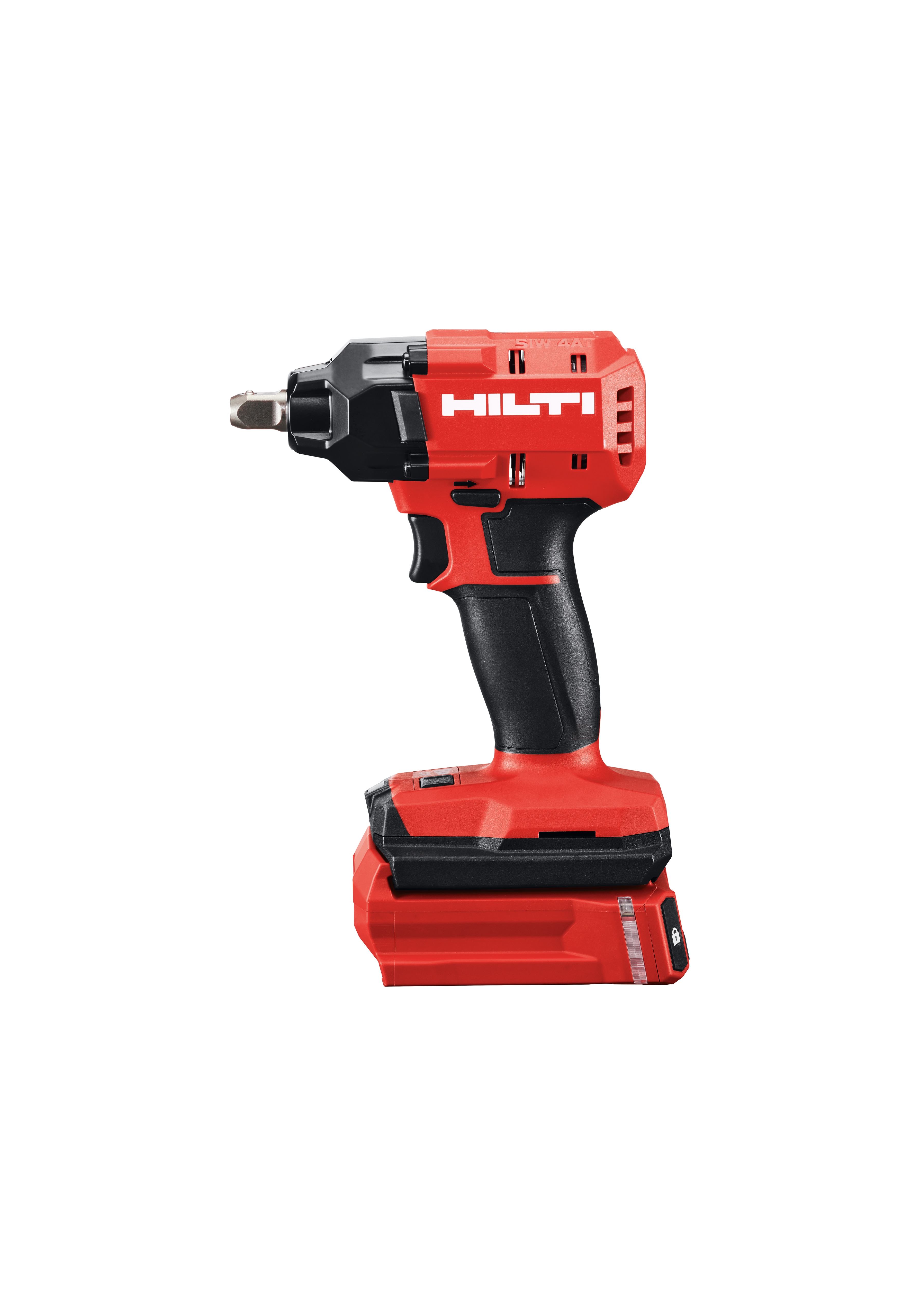

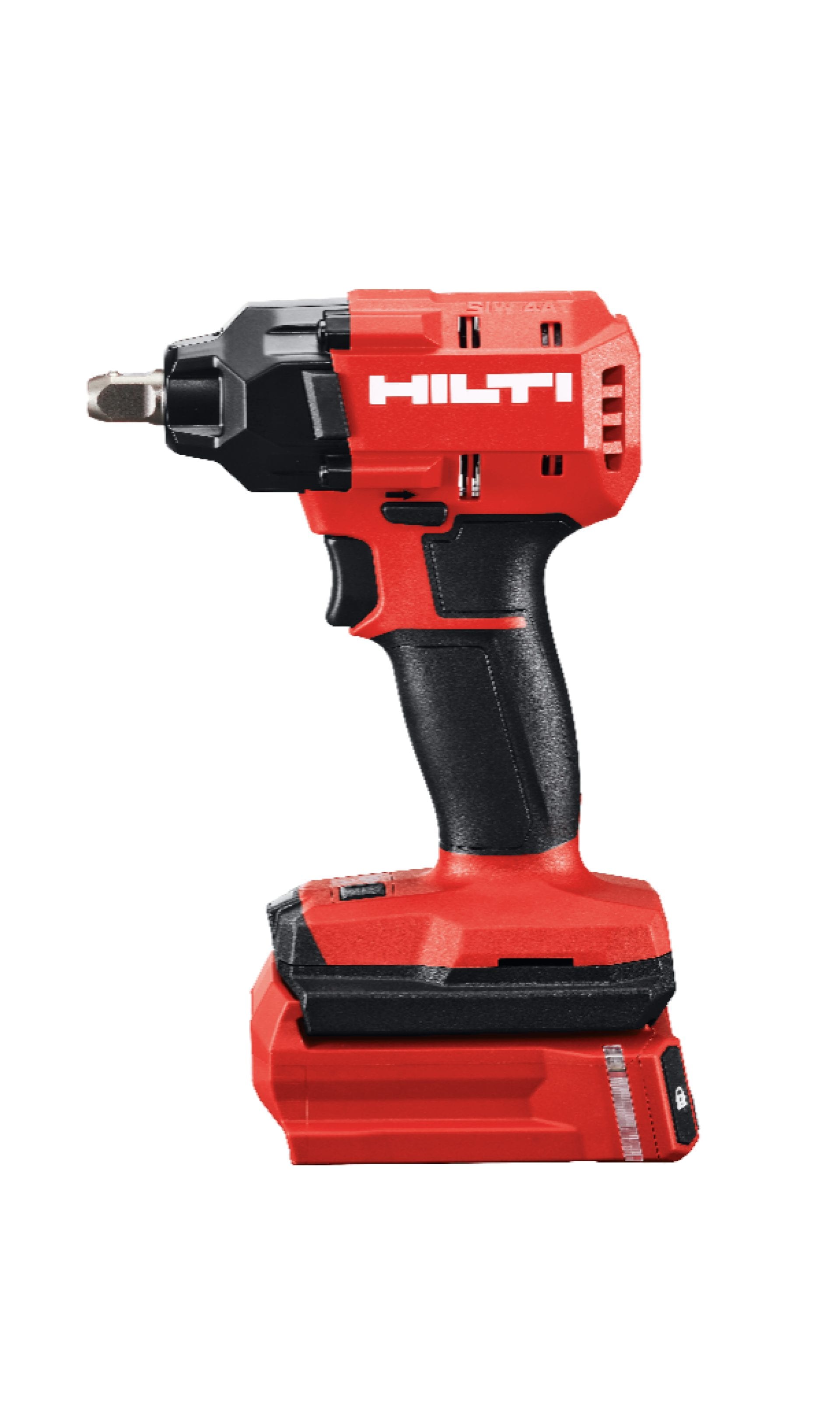

SIW 4AT-22 cordless impact wrench: With intelligent electronics, a more robust anvil and a sleeker front part which can reach into tighter spaces.

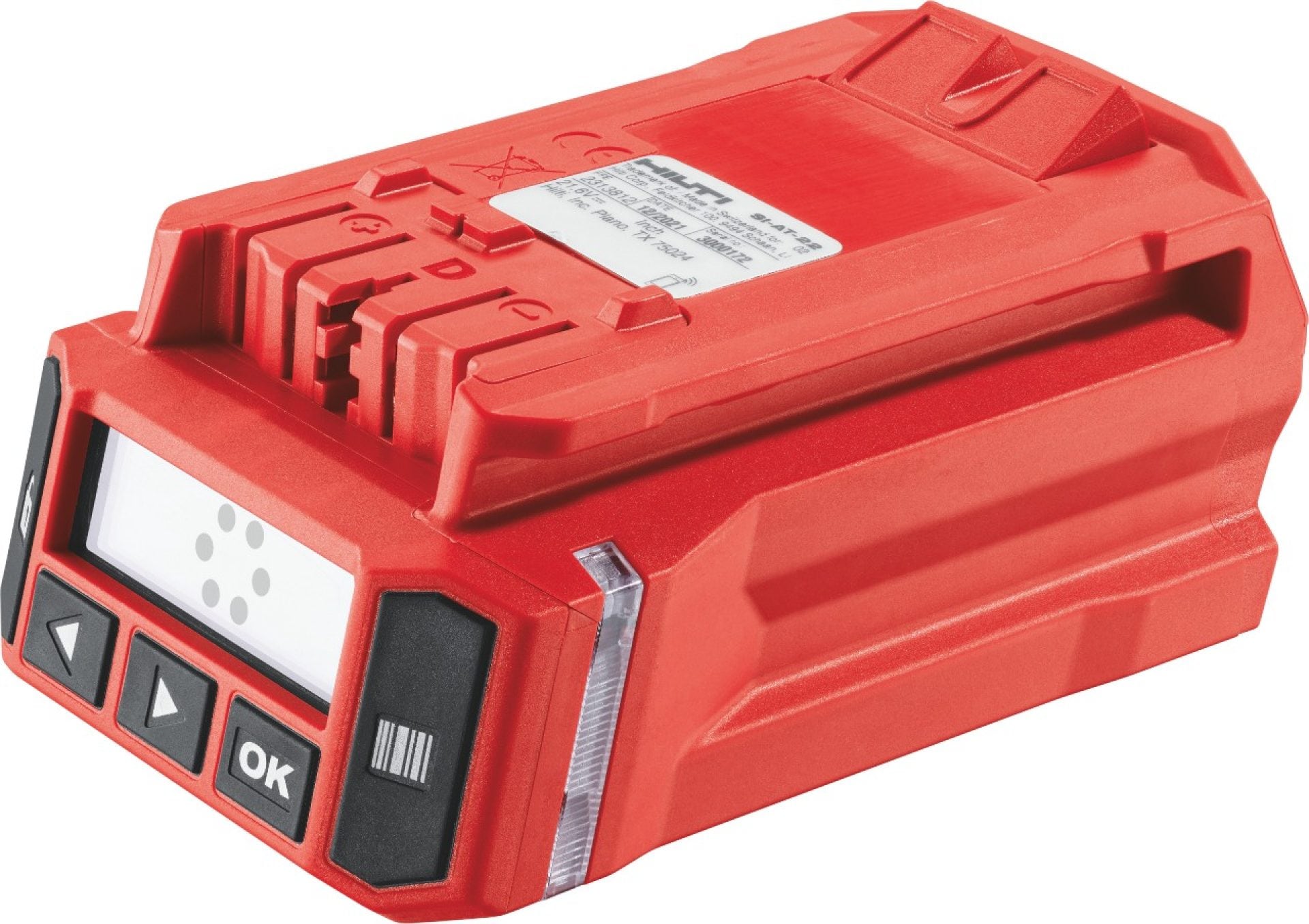

SI-AT-22 module which is a small, very light interface which slots in between the impact wrench and battery and crunches live data from the SIW 4AT-22 to recognize when an anchor has been correctly installed.
Documentation software so that the SI-AT-22’s job history can be transferred to a PC and used to create a detailed installation certificate.
Consumables for example Hilti HST 3, HST 2, KB-TZ and KB 3 expansion anchors for cracked and un-cracked concrete, Hilti HSA expansion anchors for un-cracked concrete.
AT-ready tools are equipped with the sensors and on-board intelligence to confirm if an anchor has been torqued according to ETA and ICC-ESR approvals. The operator simply inputs which anchor is being used – as easy as scanning the box with the SI-AT-22’s integrated barcode reader – and the tool does the rest. Afterwards, the tool can be connected to a computer to instantly generate an installation report, offering inspectors and specifiers a guarantee that the work has been carried out exactly as specified.
Standard expansion anchor for uncracked concrete (CS)
Simple, Fast, Effective
Select your anchor

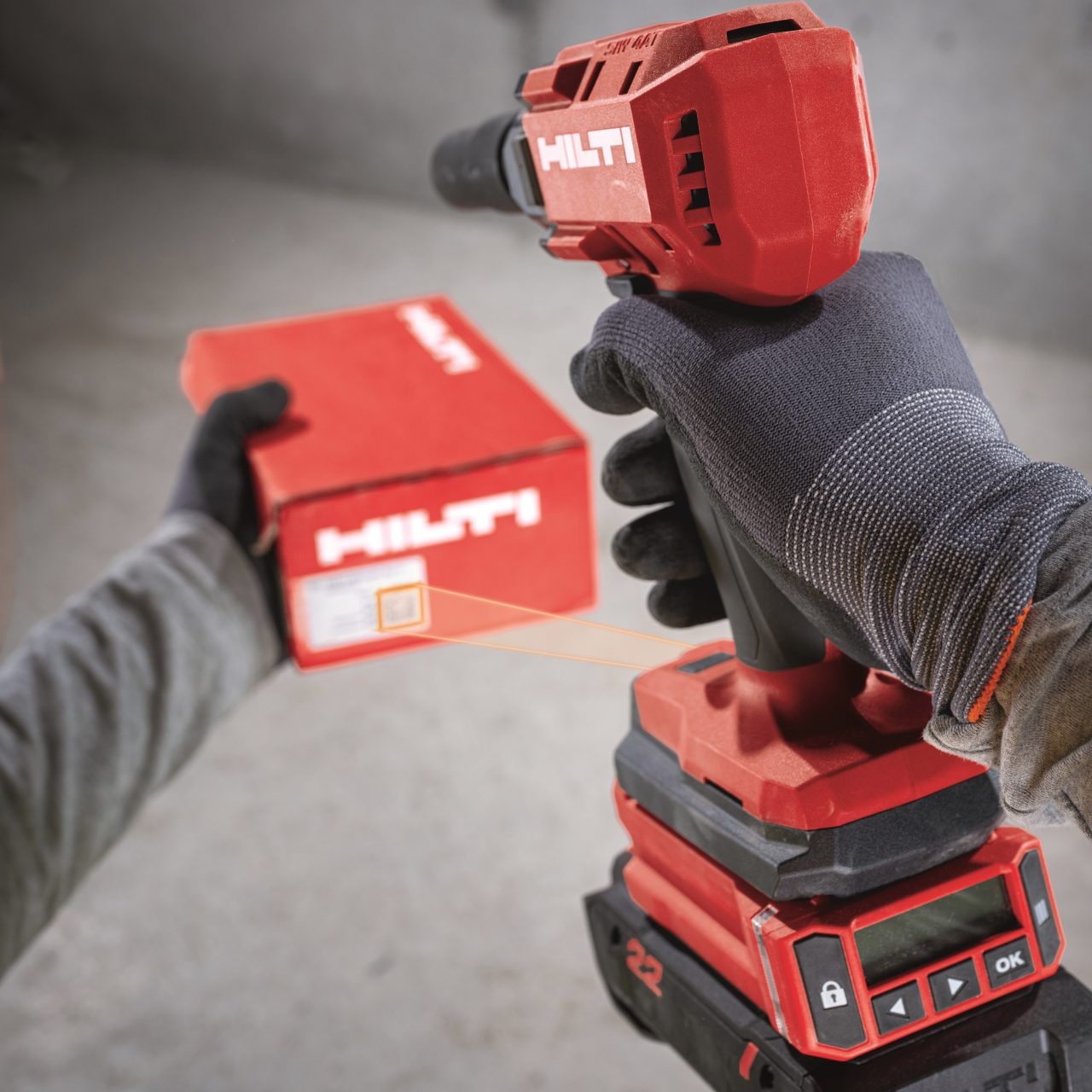

Use the SI-AT-22 module’s built-in scanner to read the barcode on your box of anchors. The SIW 4AT-22 impact wrench then adjusts the torque setting to meet certification requirements. Tap the lock button to confirm your selection, and the impact wrench is ready to use
Pull the trigger

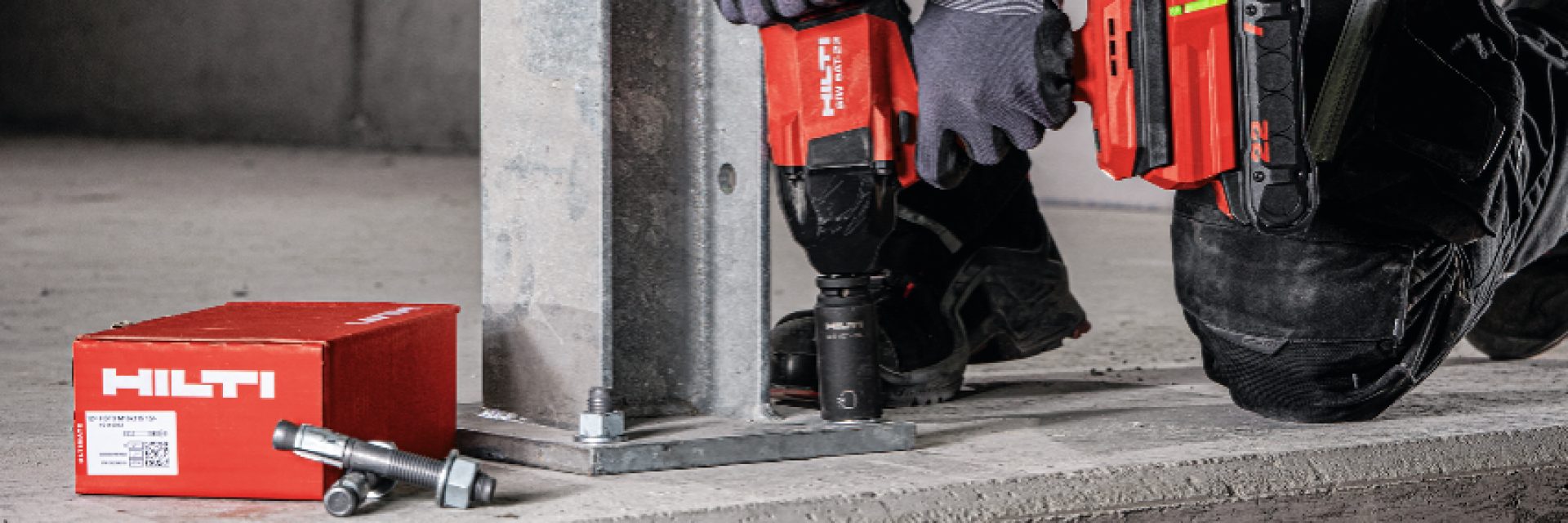

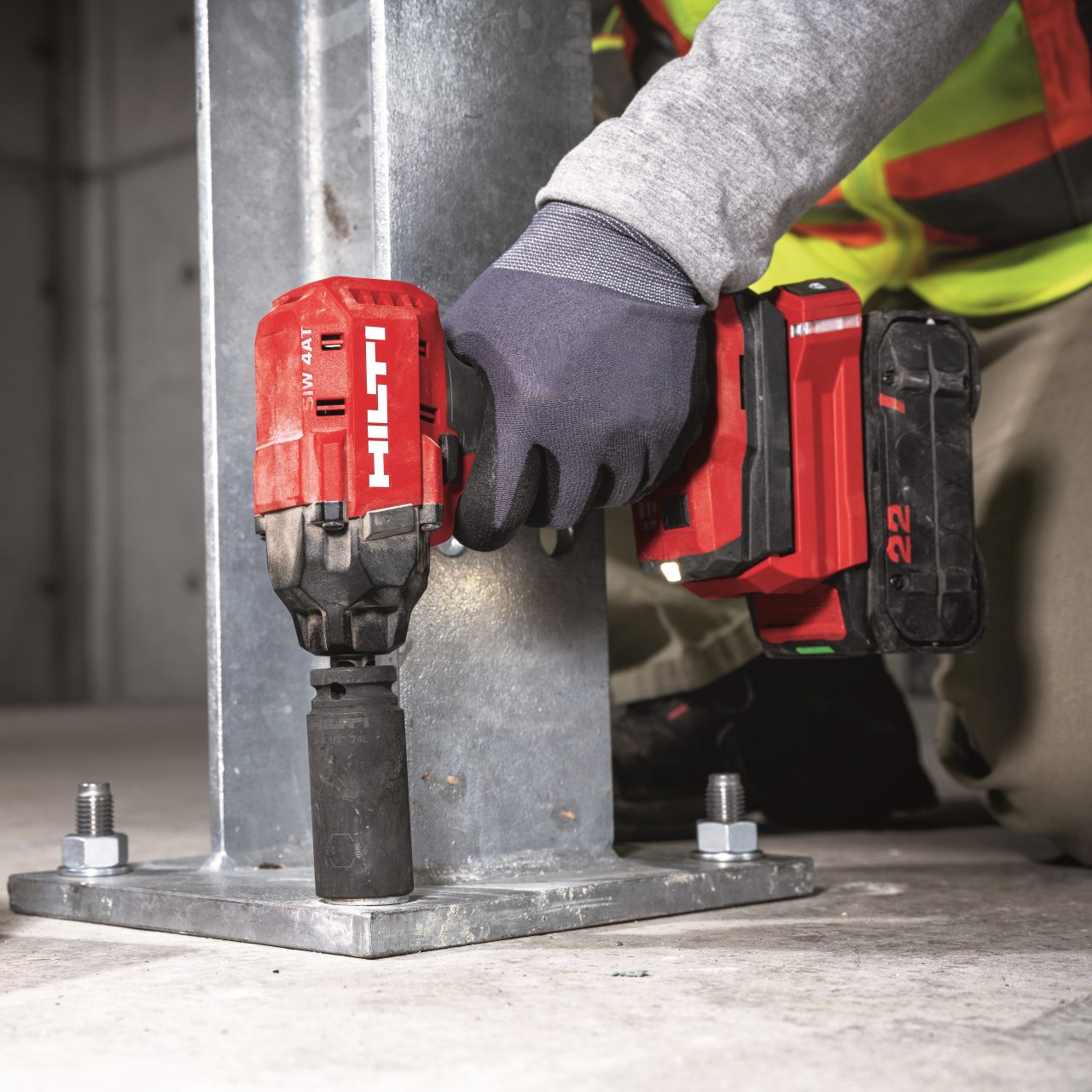

With the SIW 4AT-22 impact wrench, all you need to do is pull the trigger and let the tool work. As soon as the SI-AT module lights up green, you know the anchor has been torqued to exactly the right level to comply with ETA and ICC-ESR approvals.
Adjust and retorque
Giving you confidence that the anchor has been correctly installed, sensors in the SIW 4AT-22 recognize if an anchor has been loosened and, on retightening, will restore the correct torque. And with the AT System can you adjust and retorque up to three times.
Easily generate your installation report
Full accountability has never been easier. Simply connect the SI-AT-22 module to a computer using a standard USB cable and the AT Documentation Software then downloads performance data stored by the SI-AT-22, which can be used to produce an installation report.
The report lists all products used, the method of selection (scan or manual) and completion time and date.
From a specifier’s perspective, this report proves that the anchors have been correctly installed and meet certification requirements. From an installer’s point of view, it can help you breeze through site inspections.
The SIW 4AT-22 impact wrench is intelligent enough to detect an anchor which has been tightened and then loosened again, a function which is useful for straightening or aligning neighboring fixtures, such as railings and windows.
During this process the SI-AT-22 module will use an algorithm, develop from over 10,000 tests, to retightening the anchor ensuring no over-torqueing occurs. Once complete, SI-AT-22 provides a visual indication to the operator by flashing a yellow light, displaying a notification on display and plays a sound.
The anchor setting trifecta: SafeSet
Safety. Productivity. Approval. SafeSet is Hilti’s proven methodology for consistently high-quality anchor installation at lightning speed.
The SIW 4AT-22, along with the SI-AT-22 module, fulfills all SafeSet criteria because they save time and reduce costs while also removing scope for installation error.
