HDA-PR Undercut anchor
New productItem #r2345
Ultimate-performance pre-set undercut anchor for dynamic loads (stainless steel)
- Material, corrosion: Stainless steel, A4
- Head configuration: Externally threaded
- Approvals / test reports: ETA, ICC-ES report (concrete), Nuclear (NQA-1), Seismic
Share
Features & Applications
Features & Applications
Features
- Combines the flexibility and immediate loading of a post-installed mechanical anchor with the performance of a cast-in-place headed stud
- Close spacing and small edge distances thanks to low expansion forces
- Self-undercutting facilitates fast and reliable installation without the need for additional tools
- The keying effect provides a secure hold even in cracked concrete under dynamic loading
- Manufactured under the NQA-1 nuclear quality assurance program with comprehensive approvals
Applications

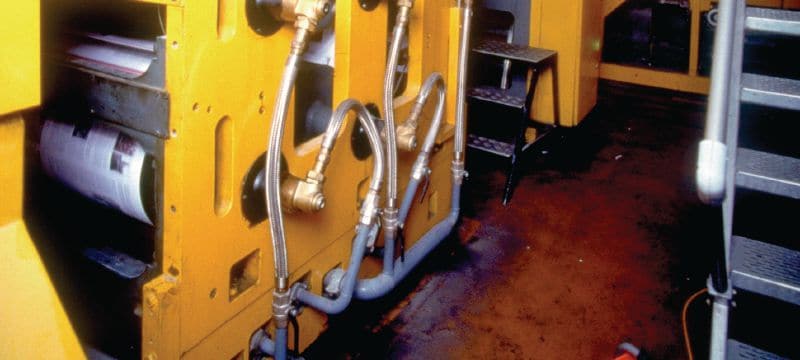

- Safety-relevant, heavy-duty fastening for dynamic loading in cracked or uncracked concrete and corrosive environments, including applications in nuclear power plants

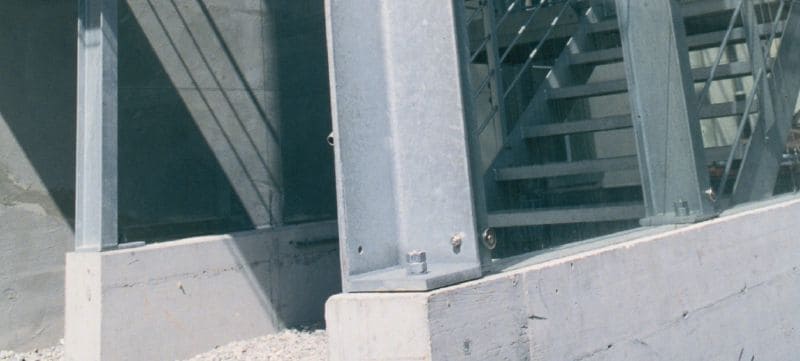

- Anchoring supports for heavy pipes, safety barriers, industrial machines, crane rails, dorm structures, crash barriers, roof fastening points, elevator tracks, bridge retrofitting etc.
