Filling washer (mechanical plating)
New productItem #r7285937
Set for filling the annular gap in mechanical and chemical anchors (mechanical plating)
Share
Features
- Easy handling, even with multiple fastening points
- Through-fastening is possible
- Optimal load transfer through the spherical washer and filling of the annular gap
- Mechanical plating (minimum 60 μm thickness) for improved corrosion protection

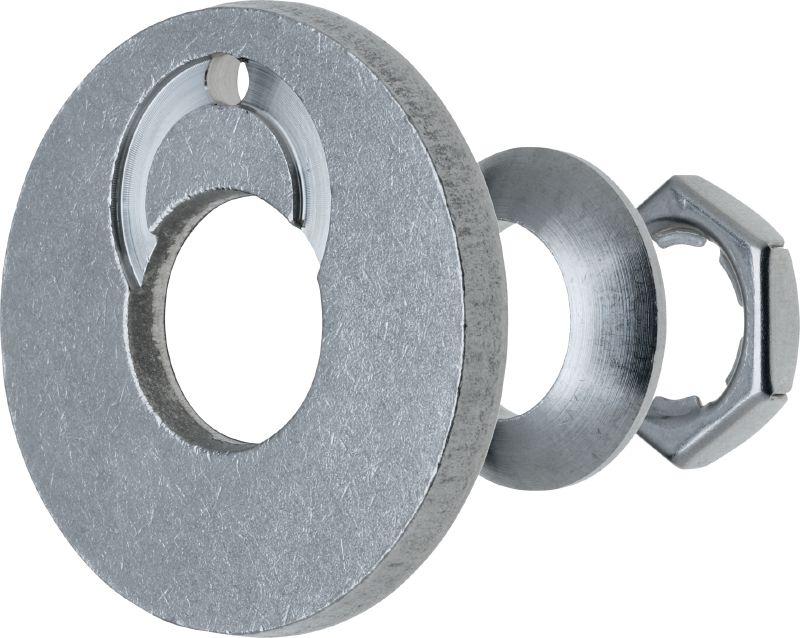

- Sizes M8-M20 incl. a lock nut (as shown on picture)
Applications
- Applications where shear loads need to be taken up entirely (gap filled with HIT-HY 200 or HIT-RE 500 V3 injectable adhesive anchor)
- Seismic or fatigue applications
For approval or certificate information, please see individual items.
Documents
Instructions for use videos
-
Mechanical Anchors Filling Set How-To (16:9, EN)
-
HUS Filling Set How-To (16:9, EN)
-
Chemical Anchors Filling Set How-To (16:9, EN)
