Nuron

TE 50-22 cordless rotary hammer

TE 50-22 + TE-YX SM28 #3941447

Configurator
Technical Data
Features & Applications
Related Products
L600146 (3041060)
L148593_cropped (3159819)
L148613_cropped (3159821)
L148624_cropped (3159832)
L148633_cropped (3159839)
L148650_cropped (3159844)

Compact and cordless SDS Max (TE-Y) rotary hammer drill with lighter weight, more power and less vibration for drilling and chiseling in concrete (Nuron battery)

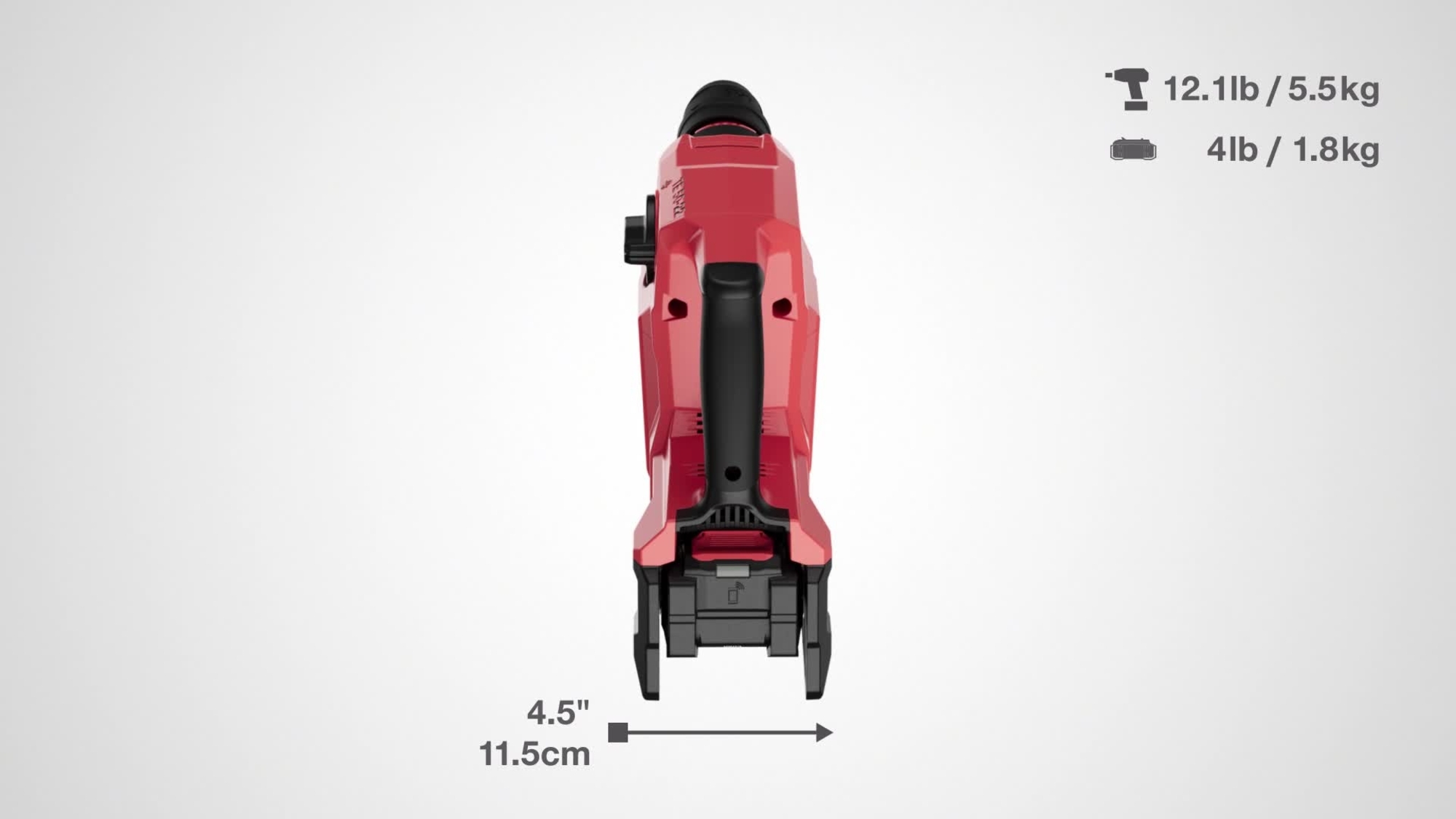

  • Weight according to EPTA-Procedure 01/2003 without battery: 5.5 kg
  • Optimum hammer drilling range: 16 - 35 mm
  • Hammer drilling diameter range: 12 - 82 mm

Customize your kit

Tool Body
Tool body with cardboard box
How many kits do you want to order?
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
HKD 9,435.06

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
5.5 kg
Optimum hammer drilling range
16 - 35 mm
Hammer drilling diameter range
12 - 82 mm
Single impact energy
6 J
Hammer drilling RPM
360 rpm
Full hammering frequency
3510 impacts/minute
Functionality
Active Torque Control (ATC), Active Vibration Reduction (AVR), Chiselling, Hammer drilling
Triaxial vibration value for hammer drilling into concrete (ah,HD)
8.6 m/s² 1
Triaxial vibration for chiselling in concrete
6.8 m/s² 2
A-weighted emission sound pressure level
99 dB (A) 3
A-weighted emission sound power level
107 dB (A) 4
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see Operating Instruction for more details)
  4. According to the applicable product standard (see Operating Instruction for more details)

Features & Applications

Features

  • Power and versatility for tough jobs - broad range of inserts combined with brushless motor for higher performance drilling, chiseling and coring
  • Work more comfortably - ergonomic design and Active Vibration Reduction (AVR) technology helps reduce user fatigue on the jobsite
  • Safer work environments - Hilti's innovative Active Torque Control (ATC) provides more protection from tool over-rotation when drill bits get stuck
  • Drop protection - more robust battery plus metal battery garage protect against rotary hammer failures after accidental drops
  • On the Nuron battery platform - cordless tools without compromise thanks to longer-lasting batteries and a range of services to keep you more productive, today and tomorrow

Applications

  • Versatile rotary hammer drill for concrete construction work and building services installation
  • Drilling holes for pipe penetrations or plug sockets through concrete and masonry
  • Chiseling in concrete, masonry, tiles and plaster for demolition
  • Ideal for repetitive drilling in reinforcing bar
